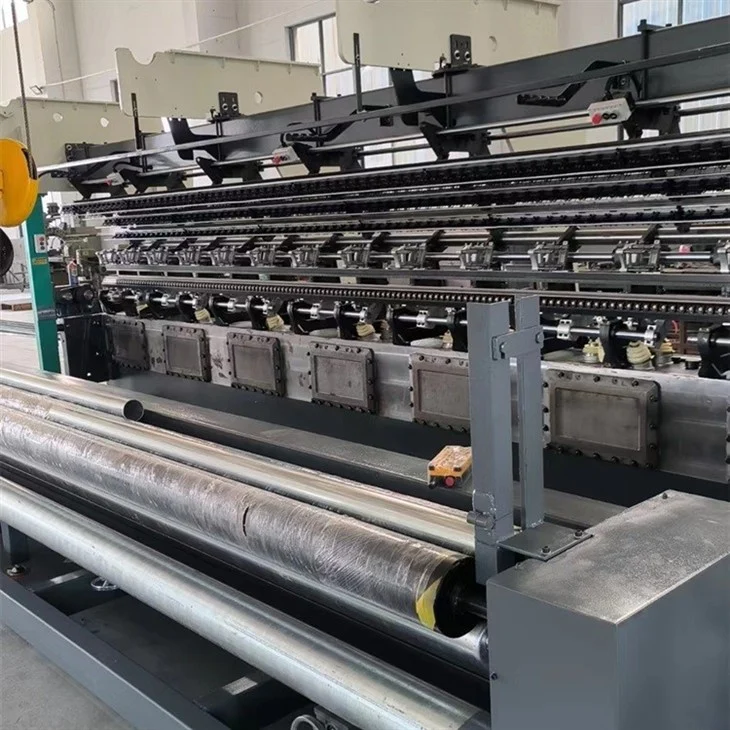

Microfiber Towel Warp Knitting
KS4BMHY series microfiber towel warp knitting machine is mainly used to produce microfiber terry fabrics, such as microfiber towels, bath towels, beach towels, bed blankets, bamboo fiber dish towels, etc. Compared with the traditional terry machines, the towels produced by our microfiber towel warp knitting machines are softer and more absorbent, with faster weaving speed, higher production stability, relatively low energy consumption, less pollution in the production process, more environmentally friendly process, and more resource-saving.
- Description
| Specification | Details |
|---|---|
| Machine Model | KS4BMHY |
| Needle Type | Compound Needle |
| Gauge | E24, E26, E28 |
| Working Width | 190", 220", 268" |
| Guide Bar No. | Four Bars |
| Main Drive | Crank Linkage |
| Max Speed | 1500 RPM (190"), 1400 RPM (220"), 1200 RPM (268") |
| Loop Height |
L1: 4 mm (Max.) L4: 10 mm (Max.) |
| Pattern Drive |
Pattern cams with moving-change device Optional: Electronic traversing |
| Yarn Let-off Device | EBA/EBC electronically controlled yarn let-off, driven by geared motor |
| Fabric Take-up | Electronically controlled, four-roller system in continuous execution, driven by geared motor |
| Batching Device | Independent batching device with fillets |
| Power – Main Motor | 7.5 kW (190"), 9 kW (220"), 11 kW (268") |
| Power – Inching Motor | 0.75 kW |
| Power – Oil Circulation | 1.5 kW |
| Power – Brushing Device | 2.2 kW (190"), 3 kW (220"), 3.5 kW (268") |
| Beam Size | Ø30 × 21"; Ø42 × 21" |
| Optional Device | Integrated broken-yarn laser automatic stop device |
