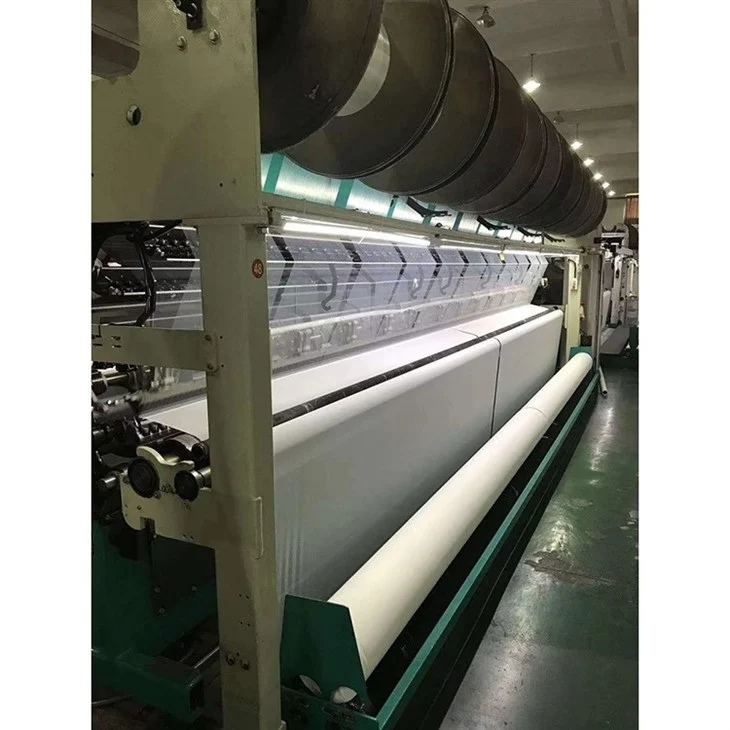

High Speed Tricot Machine (HSK-3)

The huge variety of modern textiles involves the necessity to focus attention on different aspects and certain specific conditions during production. For producing stretch and non-stretch plain fabrics and pile fabrics, NEW POWER offers the most flexible tricot warp knit machines: OYHKS3 and OYHKS 3- EL.

WhatsApp Enquiry

Description

Specification	Details
Machine Model	OYHKS3-EL Tricot Machine
Working Width	136", 218", 268", 280", 290", 318", 335", 390"
Gauge	E24, E28, E32
Bars / Knitting Elements	Individual needle bar with compound needles; slider bar with plate slider units; sinker bar with compound sinker units; 3 guide bars with guide units. All bars are made of carbon-fiber-reinforced plastic.
Electrical Command System	Operator interface to configure, control, and adjust the electronic functionality of the machine.
Main Drive	Crankshaft linkage mechanism
Max Speed	2300 RPM
Pattern Drive	EL-Drive with four electronically controlled motors
Yarn Let-off Device	Electronically controlled, driven by geared motor; EBC sequential let-off device
Fabric Take-up	Electronically controlled, four-roller system in continuous execution, driven by geared motor
Oil Supply	Oil circuit, forced pressure lubrication, centralized heating and cooling
Batching Device	Batching device with friction device, driven by gear motor; regulation to match the stitch courses; deflection roller; maximum batch diameter of 914 mm (36 inch); spreading roller; fabric edge unrolling appliance
Integrated Monitoring Device	Integrated laser stop device
