Robotic Tufting Machines

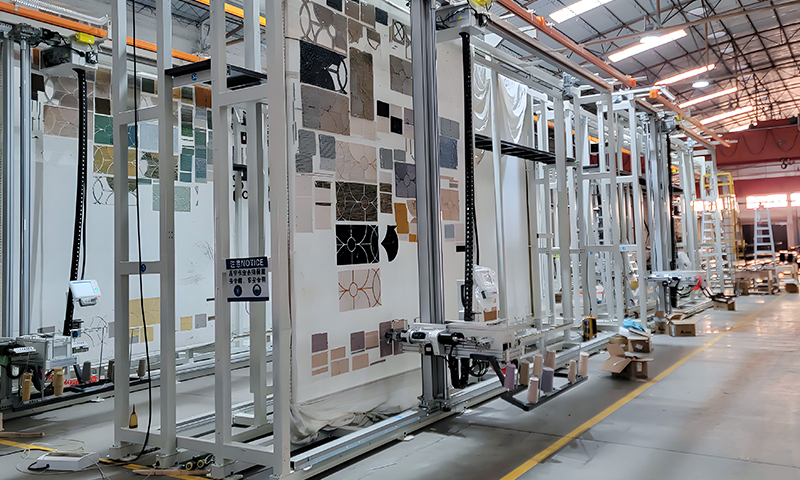

Our flagship product is the robotic tufting machine, which is designed to streamline the tufting process in carpet and fabric manufacturing. These machines feature cutting-edge automation and precision technology to ensure high-quality production with minimal waste and enhanced speed.

WhatsApp Enquiry

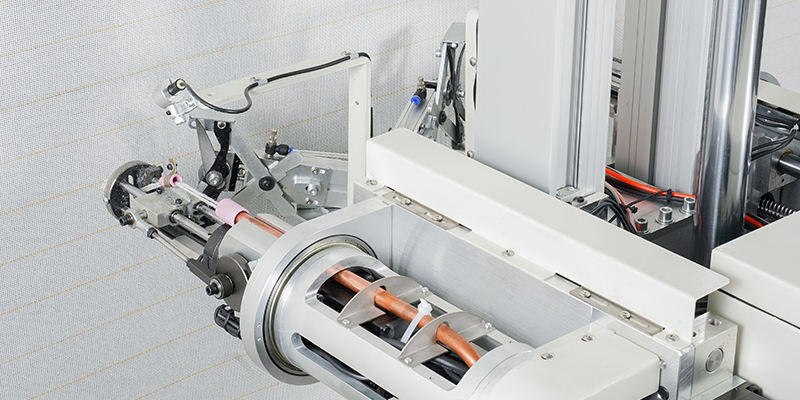

Robotic tufting machine high-speed operation system

Machine Features

Operation Speed

Cut Pile Tufting Speed: 50–2000 stitches/min
Loop Pile Tufting Speed: 50–2500 stitches/min
Mechanical Running Speed: 38 m/min

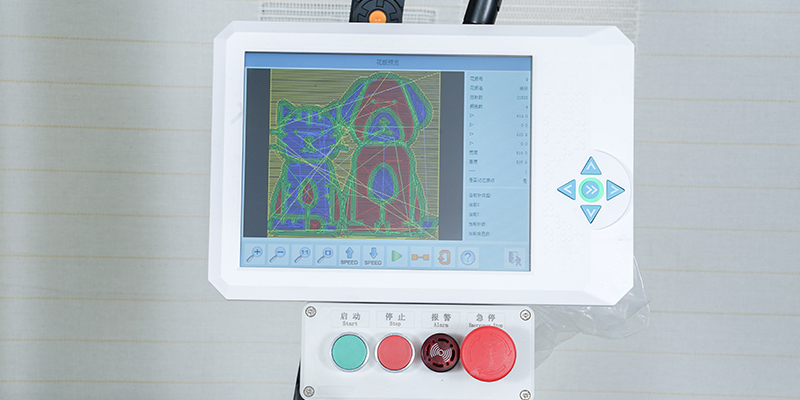

Computer control interface for carpet tufting machine

Machine Features

Power Consumption

Working Power Consumption: 3.5 kW/h

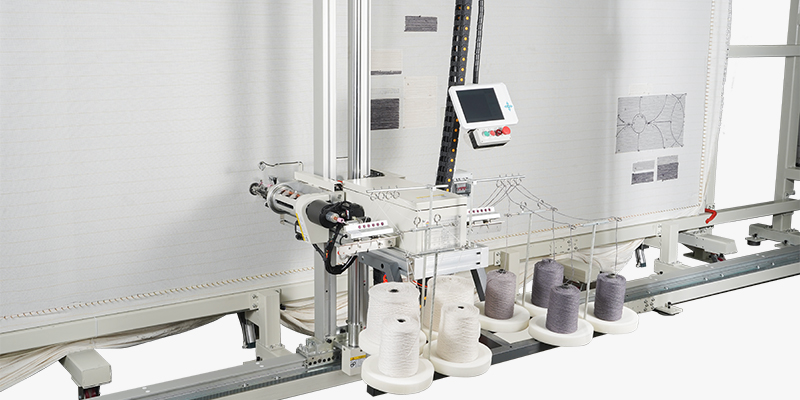

Auto tufting machine yarn configuration system

Machine Features

Product Configuration

Line Spacing: According to the dimension of filling path
Needle Stitch: 2mm–8mm (customize)
Cut Pile Height: 8mm–38mm
Loop Pile Height: 5mm–40mm

Machine Features

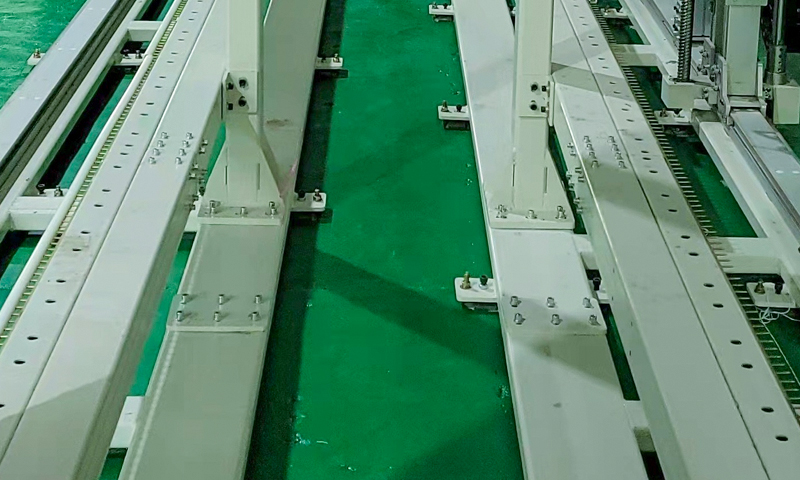

Precision positioning system of robotic tufting machine

Accuracy

The repeat positioning accuracy of X/Y axis is ±0.1mm/m.

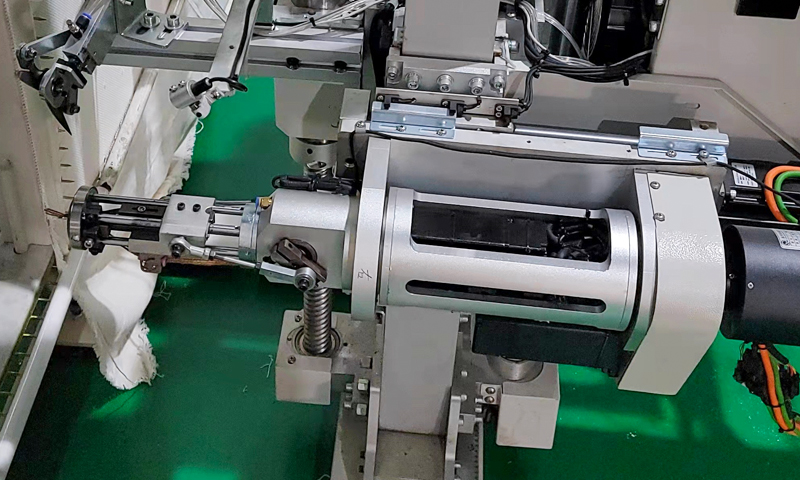

High Speed

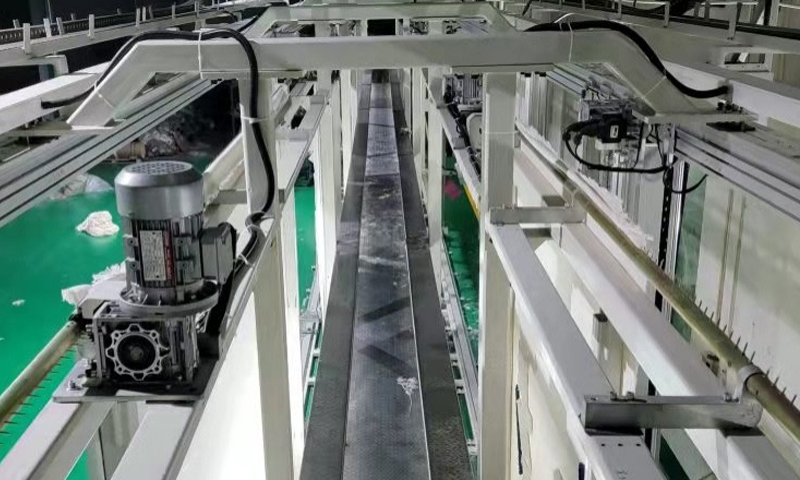

The speed of cut pile can reach 2000 stitches/min. The gun head can intelligently adjust the tension of the base cloth to ensure the flatness of the carpet surface, and therefore easily produce high and low pile carpets. It can also easily produce designs that combine both cut pile and loop pile.

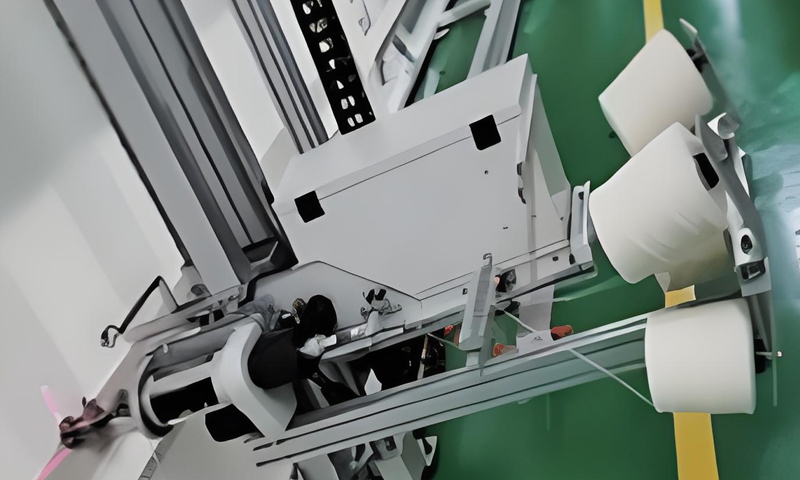

Automated detection system for tufting machine operation

Automation

The disconnection detection system will automatically alarm when it detects a disconnection and automatically return to the maintenance point.

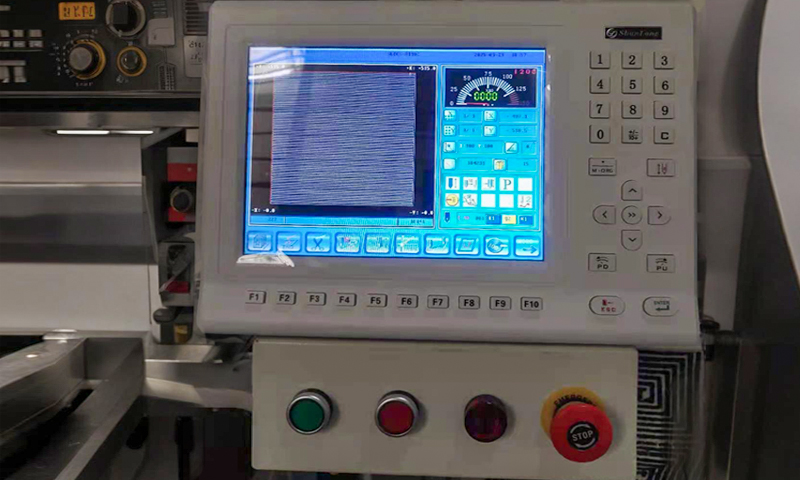

Intelligent

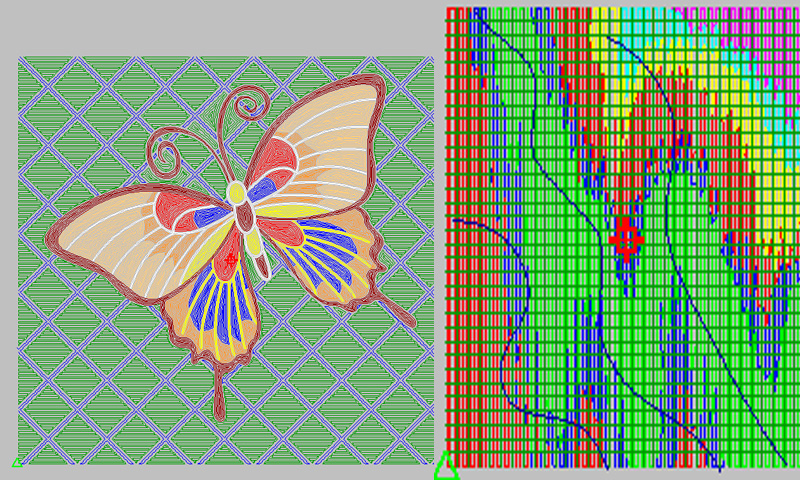

The intelligent computer system can easily adjust the needle interval during the production process to meet the manufacturing requirements of all types of carpets.
