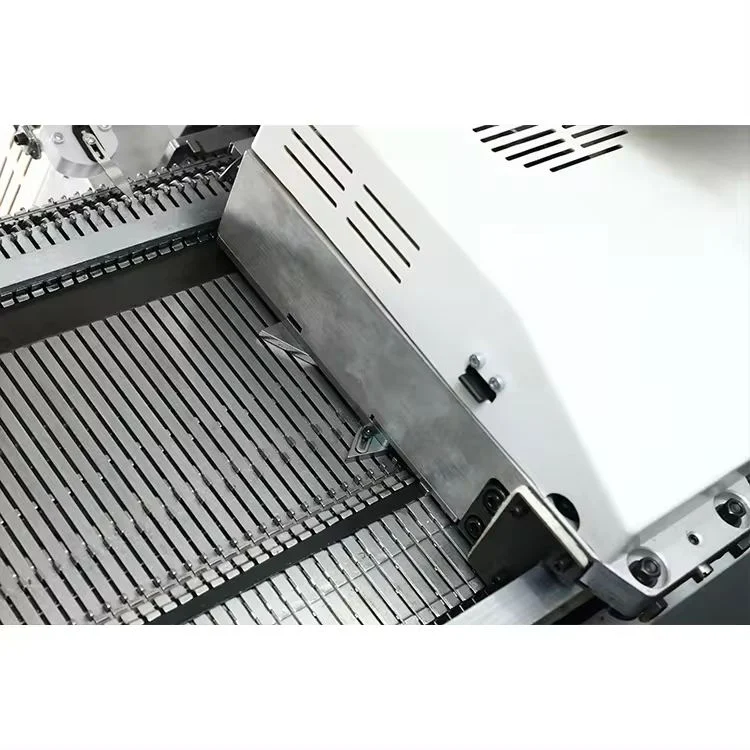

Fully Automatic Industrial Flat Knitting Machine
Double system double carriages, up to 120 inch. According to the width of the fabric, when knitting wide fabric, machine carriages will be combined into four system. When knitting narrow fabric, machine carriages will be separated. Woven twisted flowers, tranfer, tuck, jacquard, miss. Two carriages can knit two fabrics at the same time to improve efficiency.
- Description
| Specification | Details |
|---|---|
| Gauge | 3G, 3.5G, 3-5-7G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, 14G |
| Knitting System | 2+2 System Double Carriages |
| Knitting Width | 110 inches |
| Knitting Speed | Max. 1.4 m/sec |
| Knitting Function | Transfer, tuck, miss, jacquard, intarsia, hide or apparent shaping |
| Stitch Density |
Stitch system controlled by stepping motor. 32-section stitch selectable. Adjustable scope supported by subdivision technology: 0–650 |
| Racking |
Controlled by AC servo motor. Racking within 2 inches with fine-adjusting function. |
| Drive System | Synchronous belt drive, AC servo system |
| Needle Selection |
Controlled by computer. Electric magnet needle selection system with high efficiency. |
| Yarn Carrier | 2 × 8 yarn carriers on each side of 4 guide rails, shiftable to any needle position |
| Take-Down Roller |
Programmed instruction controlled by stepping motor. 32-section levels selection. Adjustable area: 0–100 |
| Sinker System | Assists knitting and provides various shaping and stopping results |
| Protection System | The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, failure of racking, needle breakage, programming errors, etc. occur. |
| Control System |
1. LCD screen with USB input device. System memory: 256 MB.
A large number of design files can be stored. 2. Monitoring menu displays each operating parameter, and parameters can be adjusted at any time while the machine is running. 3. Design system is visual, easy to understand, and upgradeable. 4. Multi-language version available, including Chinese and English. |
| Power | 220V, single-phase, with power-off memory function |
