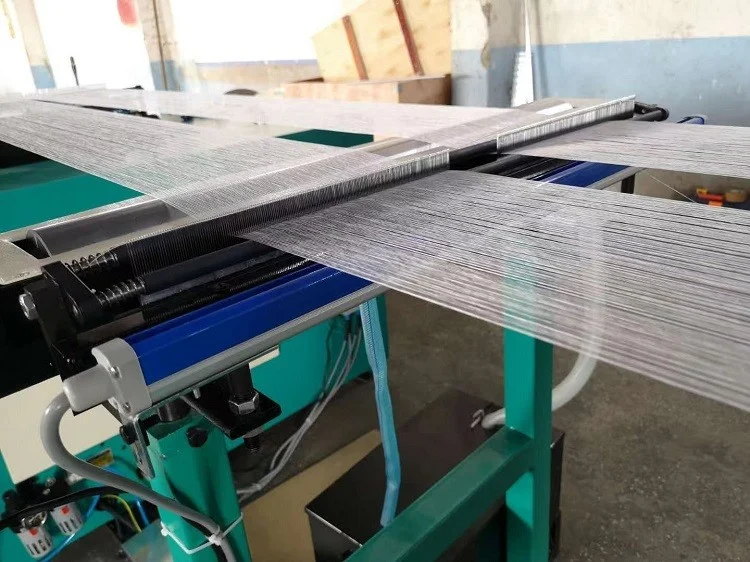

High Speed Direct Warping Machine
GF320 High speed direct warping machine is suitable for 21*30inch or 21*21inch beam with 336 ends.

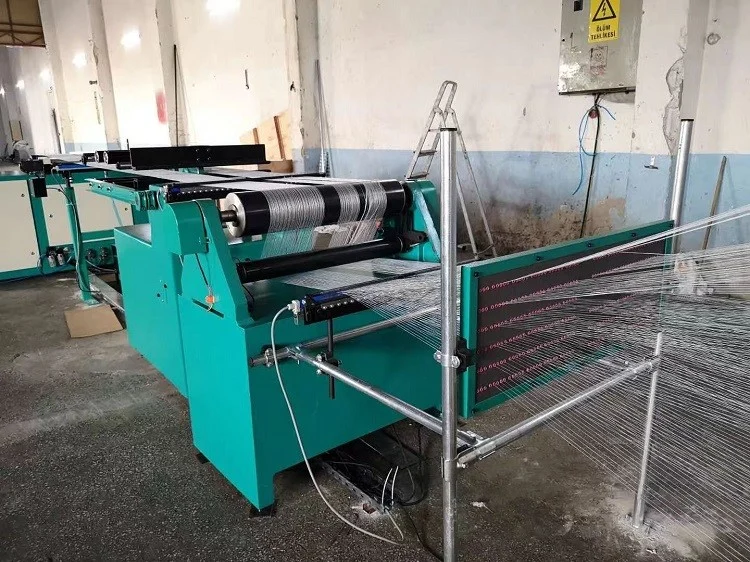

Main Machine Parts including：Warper head, automatic adding oil device, yarn storage, balance tension roller, eyelet board parts, anti-static eliminator, eyelet board, remote controller.

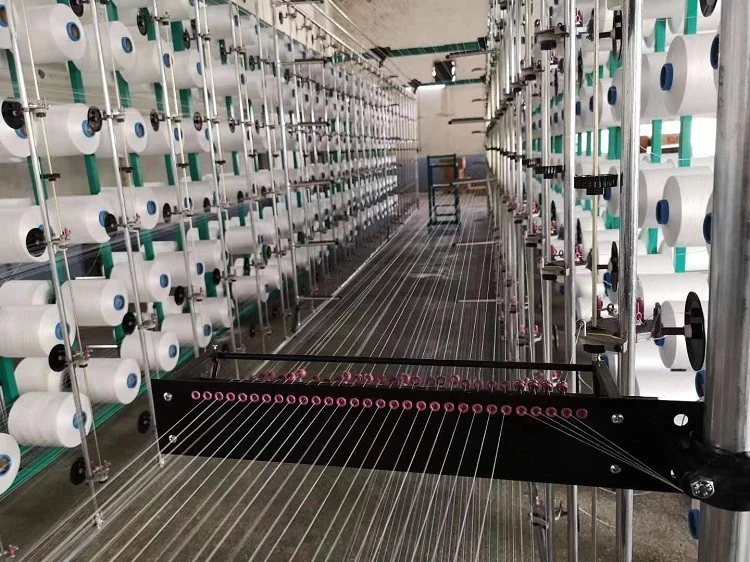

Creel Parts Configuration：Bobbin turn able creel (internal and external yarn out in two form): distance 400mm*400mm with 6 layer, YZZ-IV type hydro damping tensioner with 336 ends, Cannula creel, pin drop stop motion, a small car which can stand on it to change the yarn bobbin.
- Description
| Specification | Details |
|---|---|
| Line Speed | 0–1000 m/min |
| Max. Tension of Line | 2500 N |
| Brake Torque | 3200 Nm |
| Up and Down of Beam | Pneumatic Control |
| Tight and Release of Beam | Pneumatic Control |
| Diameter of Speed Roller | 160 mm |
| Power of Main Motor | 7.5 kW |
| Control Type of Main Motor | Converter Control |
| Monitoring Way | Immediate monitoring by microcomputer-controlled touch screen |
| Control Type of Positive Yarn-Send Roller | 2 kW AC high-speed servo control system |
| Diameter of Positive Yarn-Send Roller | 160 mm |
| Pressure of Pneumatic Source | 6 bar |
